Technical Specifications
| Design Code: | AD-Merkblatter | ASME Sec. VIII Div.2 2021 |
| Design Pressure: | 17.5 bar | 18.8 bar |
| Test Pressure: | 26.5 bar | 28.2 bar |
| Design Temperature: | -20 / +50 °C | -20 / +70 °C |
| Capacity: | 3 m³ / 45 m³ | 5 m³ / 45 m³ |
| Material: | EN 10028-2 (P355 GH) | EN 10028-3 (P355 NL1) |
| Tank Type: | Skid System | Skid System |
Details
- Project and calculation checks and approvals
- Chemical and mechanical testing of the material
- Separate material control and cold stamping
- Step-by-step inspection of production
- Dimensional inspection
- Radiographic examination
- Ultrasonic thickness control
- Penetration paint test
- Heat treatment
- Hydrostatic test

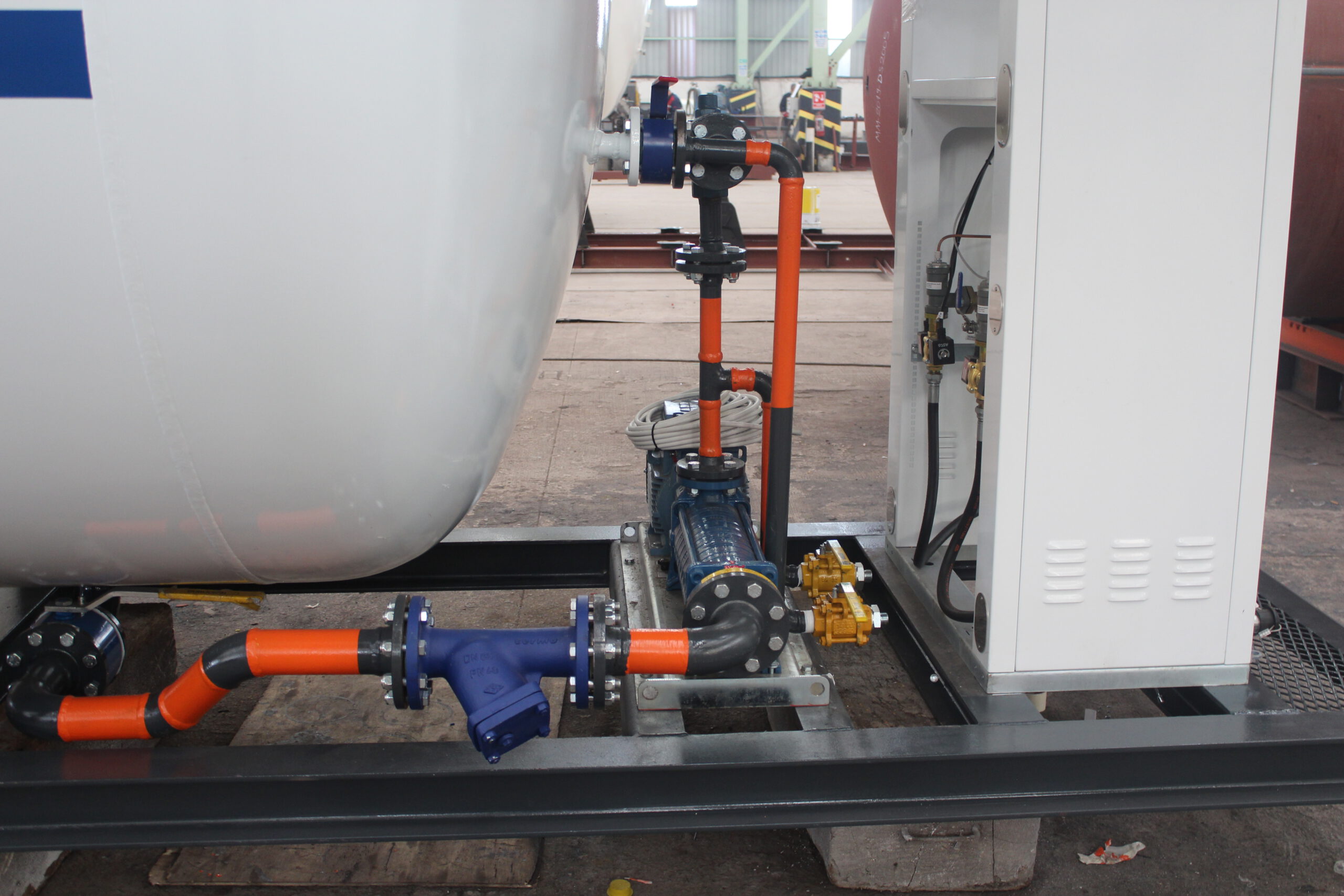

LPG Skid System: Integrated and Safe LPG Management Solution
Developed to enhance efficiency, safety, and operational ease in LPG transportation and storage systems, the LPG Skid System stands out with its integrated design. This system brings together all stages of LPG storage, distribution, and transfer under one roof, providing users with a comprehensive and reliable solution.
System Features and Advantages
Modular and Integrated Design:
The LPG Skid System integrates all system components (storage units, valves, safety systems, measuring devices, etc.) onto a single platform, accelerating installation and commissioning processes. This modular structure allows the system to be easily customized and expanded according to needs.
High Safety Standards:
The system is designed and manufactured in compliance with international safety and quality standards (e.g., EN, ASME, CODAP). This ensures the safe storage, transfer, and distribution of LPG. Internal safety valves, pressure balancing, and sealing measures help minimize potential risks.
Ease of Use and Installation:
Since skid systems consist of pre-assembled modules, field installation can be completed quickly and effortlessly. This reduces both installation time and operational costs. User-friendly control panels and automation systems ensure the safe and efficient management of operations.
Flexible and Customizable Solutions:
Offering various capacity and configuration options according to customer needs, the LPG Skid System provides ideal solutions for both small-scale distribution points and large industrial plants. This flexibility allows the system to be used in a variety of applications.
Application Areas
The LPG Skid System is preferred in a wide range of application areas:
LPG Distribution and Transfer Operations:
It ensures the safe transportation of LPG between autogas stations, industrial bulk gas users, and domestic LPG storage tanks.
Mobile and Fixed Installations:
It is designed for use in both mobile distribution vehicles and fixed facilities. It is particularly efficient for urban distribution and short-distance transfer operations.
Custom Projects and Industrial Solutions:
The system’s customizable structure makes it a holistic solution for industrial projects and specialized LPG applications.
The LPG Skid System, with its integrated structure, high safety standards, and ease of use, offers significant advantages in LPG transportation and storage operations. With its modular design, the system meets all customer needs through fast installation and customizable solutions, increasing operational efficiency while ensuring safe and sustainable LPG management.
This comprehensive solution is an ideal choice for businesses seeking to overcome challenges in LPG distribution and storage processes and increase their competitive edge in the industry.
